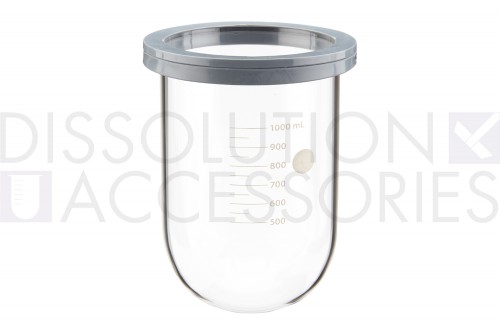

High Precision Dissolution Vessels

Dissolution Accessories together with Takao Manufacturing Co. Ltd. has developed instrument made vessels for a wide variety of brands, in Standard and High Precision.
These vessels are available in most common dimensions in Clear Glass, Amber, Peak or Teflon coated.
The vessels are adapted to every brand and work without the need of any separate adapter bracket, they fit directly in your Dissolution instrument regardless the manufacturer! No AccuCenter Vessel Centering is needed!
The pharmaceutical analysts worldwide may benefit from the Takao Vessels performance, regardless of their vendor of choice.

Precision on physical dimension.

	Specifications
	Dimension	Actual Data (min.-max.) (mm)
	Sphericity	Less 0.10
	Radius*	50.03 ±0.08
	Circularity	Less 0.06
	Cylindricity	Less 0.17
	Concentricity	Less 0.08
	Angle**	89.70-90.00

_{* Each value was measured by a three-dimensional coordinate measuring machine from Brown & Sharpe (PMM-C700P)
** The unit is in degree. Eight standard type vessels were subjected to this measurement}
