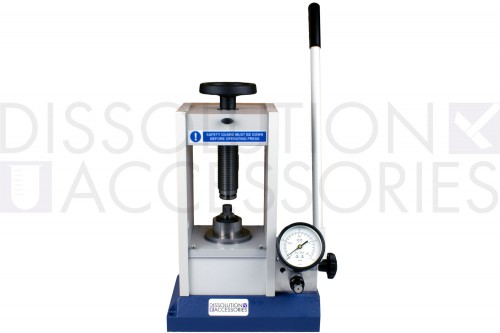

2 ton universal press for intrinsic dissolution testing
PSIDAPRS-UN
2 ton universal press for intrinsic dissolution testing
The 2 ton Manual Hydraulic Press have been designed to handle a wide variety of pressing applications. They are especially suited for the preparation of solid samples.
2 ton universal press for intrinsic dissolution testing
| Product number | PSIDAPRS-UN |
| OEM reference | 95-590-206, W010-0130 |
| OEM | Universal |
The 2 ton Manual Hydraulic Press have been designed to handle a wide variety of pressing applications. They are especially suited for the preparation of solid samples.
Specifications
Max height (at handle): 610 mm
Width: 310 mm
Depth: 190 mm
Weight: 50 kg
Lower piston stroke: 25.4 mm
Upper bolster screw travel: 89 mm
Distance between pressing faces (max): 152 mm
Distance between pressing faces (min): 38 mm
Lower pressing face diameter: 86 mm
Upper pressing face diameter: 32 mm
Max width of sampling area (side to side): 143 mm
Max depth of sampling area (front to back): 141 mm
Max height (at handle): 610 mm
Width: 310 mm
Depth: 190 mm
Weight: 50 kg
Lower piston stroke: 25.4 mm
Upper bolster screw travel: 89 mm
Distance between pressing faces (max): 152 mm
Distance between pressing faces (min): 38 mm
Lower pressing face diameter: 86 mm
Upper pressing face diameter: 32 mm
Max width of sampling area (side to side): 143 mm
Max depth of sampling area (front to back): 141 mm
