Digital verticality meter
PSVERTMET-MI
Digital verticality meter
Used for checking shaft verticality and vessel plate level condition.

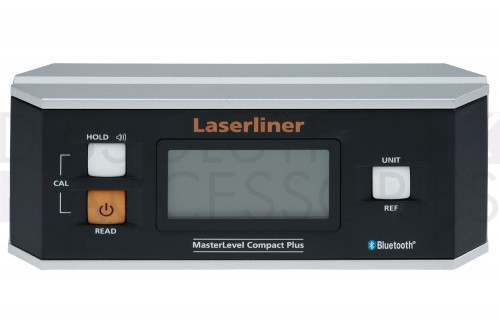

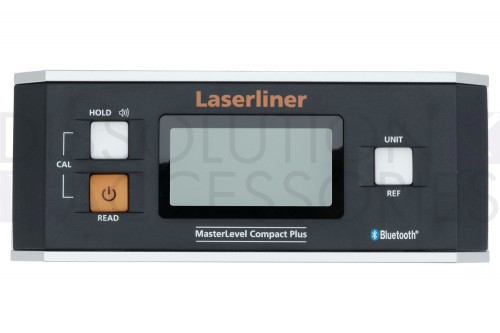

The Digital Verticality Meter provides an immediate digital reading of any angle in a full circle with 0-90°-0-90°-0 readings. The machine aluminum frame is rigid and light with a precise platform that allows the sensor and its microprocessor circuit to provide height accuracy throughout the entire 360° range.
Digital verticality meter
| Product number | PSVERTMET-MI |
| OEM reference | 0500-1046 |
| OEM | Universal |
Used for checking shaft verticality and vessel plate level condition.
The Digital Verticality Meter provides an immediate digital reading of any angle in a full circle with 0-90°-0-90°-0 readings. The machine aluminum frame is rigid and light with a precise platform that allows the sensor and its microprocessor circuit to provide height accuracy throughout the entire 360° range.
Perfect for ASTM E 2503-07 Mechanical calibration requirements to check basket and paddle shaft verticality as noted in ASTM E 2503-07, chapter 4.5.2 which states:
"Use an accurate digital level device to determine that the shafts are vertical in two directions 90° apart around the vertical axis while drive unit is in the operation position"

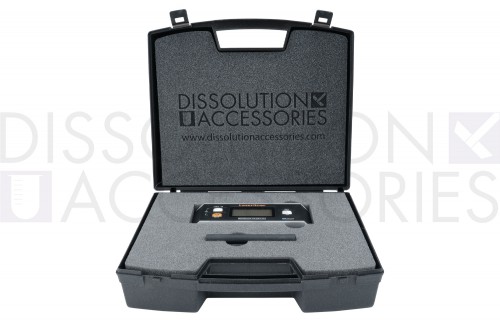

Comes complete with certificate of calibration, operating instructions and foam padded storage case.
"V" groove base allows for easy alignment upon basket and paddle shafts.
"Use an accurate digital level device to determine that the shafts are vertical in two directions 90° apart around the vertical axis while drive unit is in the operation position"
Comes complete with certificate of calibration, operating instructions and foam padded storage case.
"V" groove base allows for easy alignment upon basket and paddle shafts.
| Range of Measurement | 360° (0-90°-0-90°-0) |
| Resolution | 0.1° |
| Operating Temperature | 23°F to 122°F |
| Power | 3V, Lithium cell |
| Accuracy | 0-10 Degrees ± 0.1° |
| Weight | 10.2 oz. |
