Bluetooth Vessel centering qualification toolkit, US type
PSCNTGAG-BTHDA
Bluetooth Vessel centering qualification toolkit, US type
An easy and effective way to ensure your vessels are perfectly centered.
Accurate centering is an essential part of dissolution equipment validation. Many centering devices do not accurately take into account the actual position of the shaft in the vessel, or the vessel in the base plate.
Kit includes:
Bluetooth Vessel centering qualification toolkit, US type
Product number | PSCNTGAG-BTHDA |
OEM reference | Dissolution Accessories innovated product |
OEM | Agilent, Distek, Hanson |
An easy and effective way to ensure your vessels are perfectly centered.
Accurate centering is an essential part of dissolution equipment validation. Many centering devices do not accurately take into account the actual position of the shaft in the vessel, or the vessel in the base plate.
Kit includes:

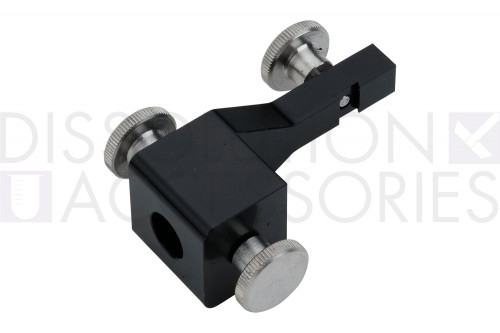

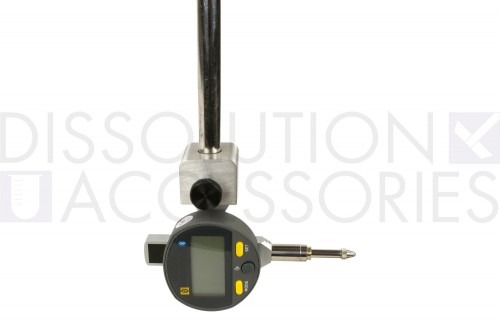

- Calibrated shaft for use with Agilent, Distek and Teledyne Hanson instruments

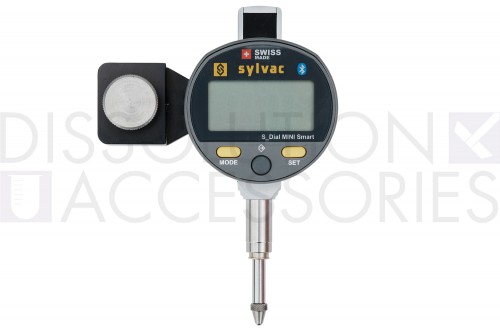

- Digital bluetooth gauge incl. Measuring tip
- End knob
- Hexagon wrench
Accurate centering is an essential part of dissolution equipment validation. Many centering devices do not accurately take into account the actual position of the shaft in the vessel, or the vessel in the base plate.

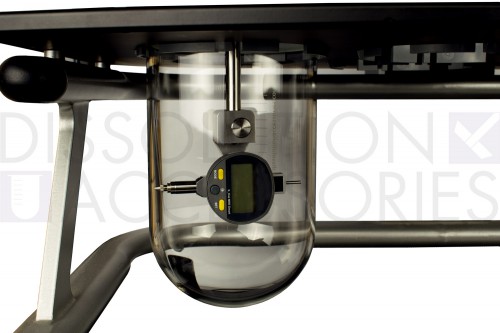

The Centering Gauge fits directly into the shaft drive. The PTFE coated lever is lowered into the vessel, approximately half way down. (It is important not to measure centering near the top of a vessel because of errors in the glass at this point).
The shaft is rotated slowly (25rpm or lower) and the lever moves around the inside of the vessel. Deviation from the centre position can then be read on the dial, which always faces forwards. Acceptable values are ±2mm from the centre point.
Full instructions for both installation and operation are included.
For the Andriod bluetooth app: Click here
For the Iphone bluetooth app: Click here
The Centering Gauge fits directly into the shaft drive. The PTFE coated lever is lowered into the vessel, approximately half way down. (It is important not to measure centering near the top of a vessel because of errors in the glass at this point).
The shaft is rotated slowly (25rpm or lower) and the lever moves around the inside of the vessel. Deviation from the centre position can then be read on the dial, which always faces forwards. Acceptable values are ±2mm from the centre point.
Full instructions for both installation and operation are included.
