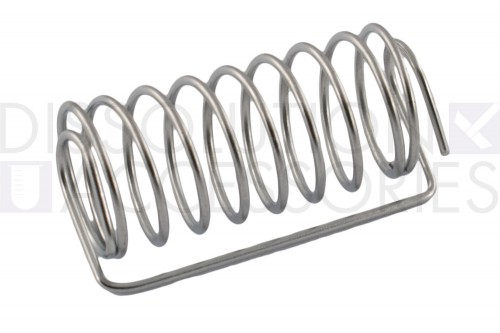

Spiral capsule sinker Hanson style, SS, 25x9.5mm

PSCAPWHT-4H
Spiral capsule sinker Hanson style, SS, 25x9.5mm


Product number     PSCAPWHT-4H
OEM reference     65-190-012, 65-190-013
OEM     Hanson
Material     316 Stainless Steel
Max capsule size     00E



Sinkers are used during a dissolution test to sink a dosage form that would otherwise float. The USP specifies that a small piece of non-reactive material, such as not more than a few turns of steel wire, can be attached to the dosage form to prevent floating. Other validated sinkers may also be used for this this purpose.

The sinker should have minimal surface contact with the tablet as this can affect the dissolution rate. The sinker weight should be heavy enough to ensure that the tablet sinks at the bottom of the vessel and doesn't move for the duration of the test.
PTFE coated sinkers can be used where there may be a reaction between steel and the tablet or when test are done with sticky samples.

Dissolution Accessories has a wide choice of sinker sizes available, do not hesitate to contact us by mail: info@prosense.net or phone +31 (0)162 47 14 85, when you are not sure which sinker you can use for your application and dissolution tester.

Capsule size Length Diameter
(inches) (mm) (inches) (mm)
000 1.029 26.1 0.390 9.91
00E 1.012 25.7 0.336 8.53
00 0.917 23.3 0.336 8.53
0E 0.909 23.1 0.301 7.65
0 0.854 21.7 0.301 7.65
1 0.765 19.4 0.272 6.91
2 0.709 18.0 0.250 6.35
3 0.626 15.9 0.229 5.83
4 0.563 14.3 0.209 5.32
5 0.437 11.1 0.193 4.91
